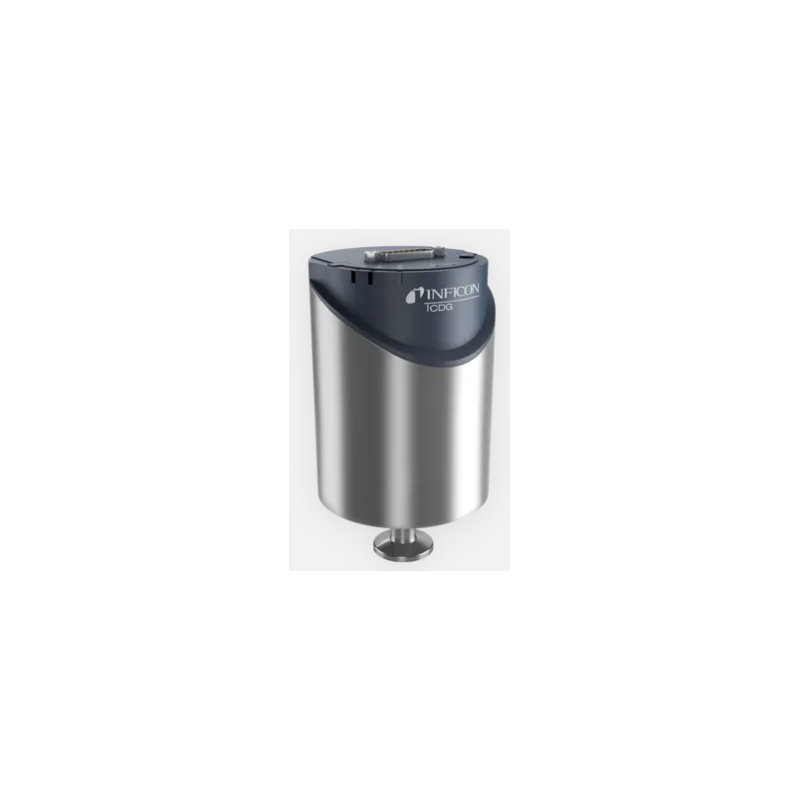

Inficon SKY® CDG200D, 10 mbar, 4 VCR male
HVC-3CE1-96C-2300
SKY® CDG200D, 10 mbar, 4 VCR male
- Lower CoO (cost of ownership), 50% faster warm up, energy efficient low power consumption
- Easy integration, wide variety of full scales, flanges and interfaces, standard with two set points
- Easy one push button or remote signal zero command, zero offset adjustable
- Diagnostic port for quick service and maintenance
- Two year warranty, longer life time with heating concept and gauge protection
- No long term recalibration due to excellent signal stability and repeatability, even in harsh plasma applications
- Compliance & standards: CE, EN, UL, SEMI, RoHS
- Type
- Capacitance gauge
- Measuring range
- 1 · 10-³ – 1.1 · 10 mbar
- Gauge model
- CDG200D
- Precision: % of measurement [%]
- 0,15
- Full scale (hPa)
- 10
- Flange
- 4 VCR male
SKY® CDG200D, 10 mbar, 4 VCR male
- Lower CoO (cost of ownership), 50% faster warm up, energy efficient low power consumption
- Easy integration, wide variety of full scales, flanges and interfaces, standard with two set points
- Easy one push button or remote signal zero command, zero offset adjustable
- Diagnostic port for quick service and maintenance
- Two year warranty, longer life time with heating concept and gauge protection
- No long term recalibration due to excellent signal stability and repeatability, even in harsh plasma applications
- Compliance & standards: CE, EN, UL, SEMI, RoHS
