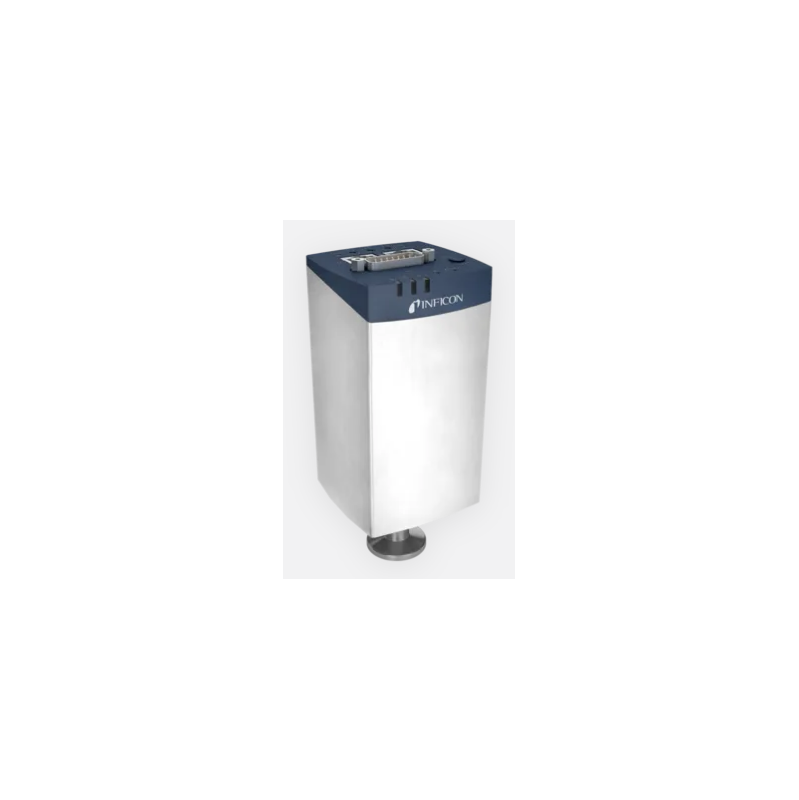

Inficon Edge® CDG045D2, 1 mbar, 4 VCR female
HVC-3CC5-66D-2300
Edge® CDG045D2, 1 mbar, 4 VCR female
- Compact, saves valuable tool space
- Easy integration, EtherCAT, wide variety of full scales and flanges, standard with two set points
- Easy one push button or remote signal zero command, zero offset adjustable
- Diagnostic port for quick service and maintenance
- Two year warranty, longer life time with advanced heating concept and gauge protection
- No long term recalibration due to excellent signal stability and repeatability, even in harsh plasma applications
- Compliance & standards: CE, EN, UL, SEMI, RoHS
- Type
- Capacitance gauge
- Measuring range
- 1 · 10-4 – 1.1E0 mbar
- Gauge model
- CDG045D2
- Precision: % of measurement [%]
- 0,15
- Full scale (hPa)
- 1
- Flange
- 4 VCR female
